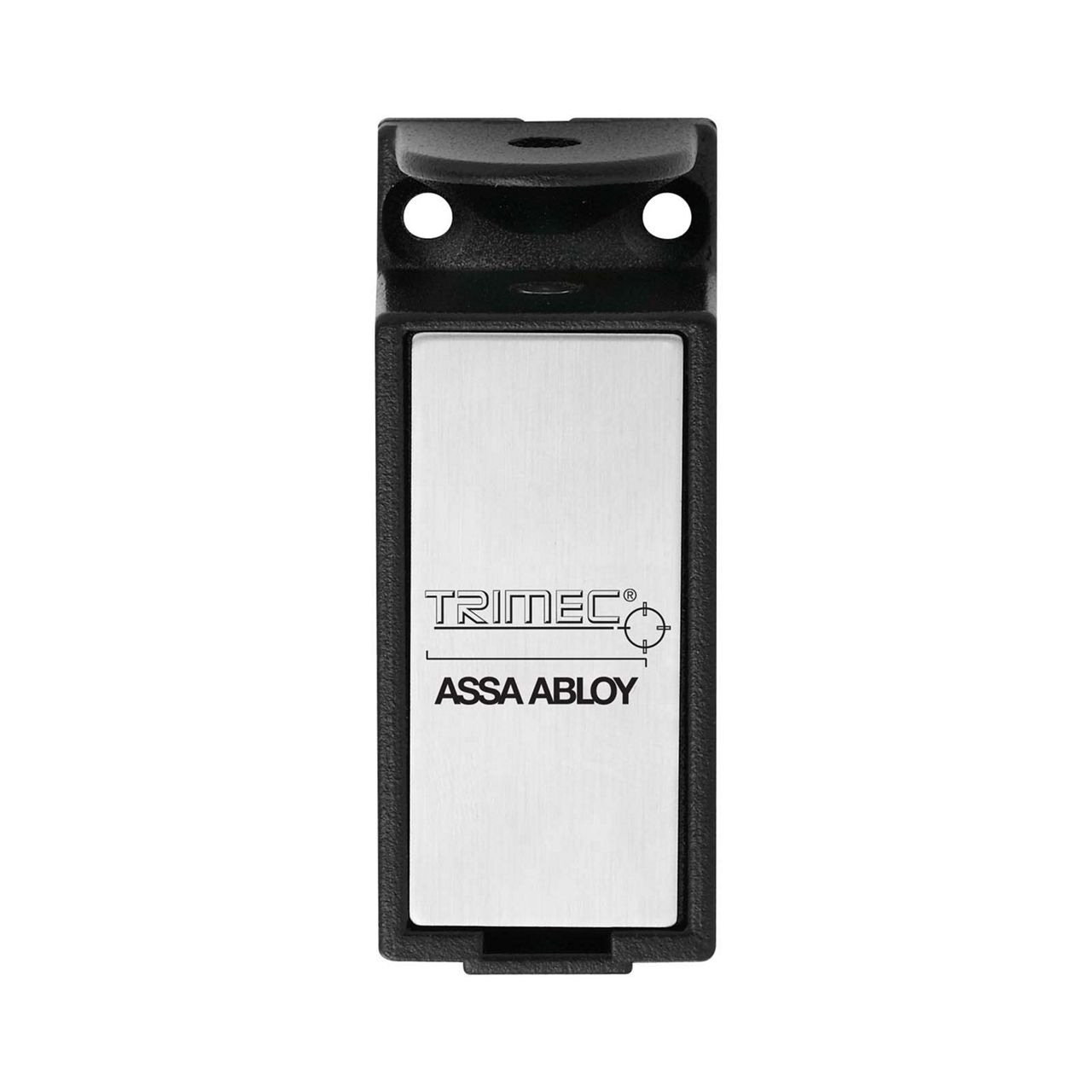

Trimec EL110 Electric Cabinet Lock
Fail safe/fail secure changeable on site.
The EL110 electric cabinet lock is a compact, cast aluminium lock specially designed for cabinets having either swing or sliding doors. The cabinet lock can be surface mounted either vertically or horizontally and offers maximum flexibility for ease of installation.
EL110 can also be controlled by any existing access control system or simply controlled through a remote keypad or keyswitch. The EL110 is cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.
Key Features
- Fail safe/fail secure changeable on site
- Flexible alignment: has a 5mm XY adjustment after installation
- Low current consumption uses only 175mA @ 12Vdc or 88mA @ 24Vdc
- Available in 12VDC or 24VDC
- Self-latching in fail secure mode
- Solenoid rated for continuous use
- Australian designed
- TRICARE® 5 Year Warranty
Applications
- Cabinet locking
- Swing or sliding cabinet doors
Standards and Compliance
- CE approved (EMC, ROHS & REACH)
- Regulatory Compliance Mark (RCM) approved
Trimec EL110 Electric Cabinet Lock
Voltage
12 or 24VdcCurrent
187mA @ 12Vdc, 87mA @ 24VdcSolenoid
Solenoids are rated for continuous use.Monitoring
NoneStrength
Holding force 150kgEndurance
Cycle tested to 1,000,000 operationsEnvironment
Operational temperature range -20c to +60cBody
Cast Aluminium ConstructionSpecification Statement
The strike which is to be surface mounted and constructed of cast aluminium, should be self latching when used in fail secure mode. The lock must be capable of being changed from fail safe to fail secure on site. Lock alignment must be adjustable up to 5mm in both "x" and "y" directions both during and after installation. The lock should consume not greater than 187mA @12Vdc and have a solenoid rated for continuous use.Dimensions
Item Part number 12V Fail Safe Cabinet Lock 111301-000 12V Fail Secure Cabinet Lock 111302-000 24V Fail Secure Cabinet Lock 111304-000
