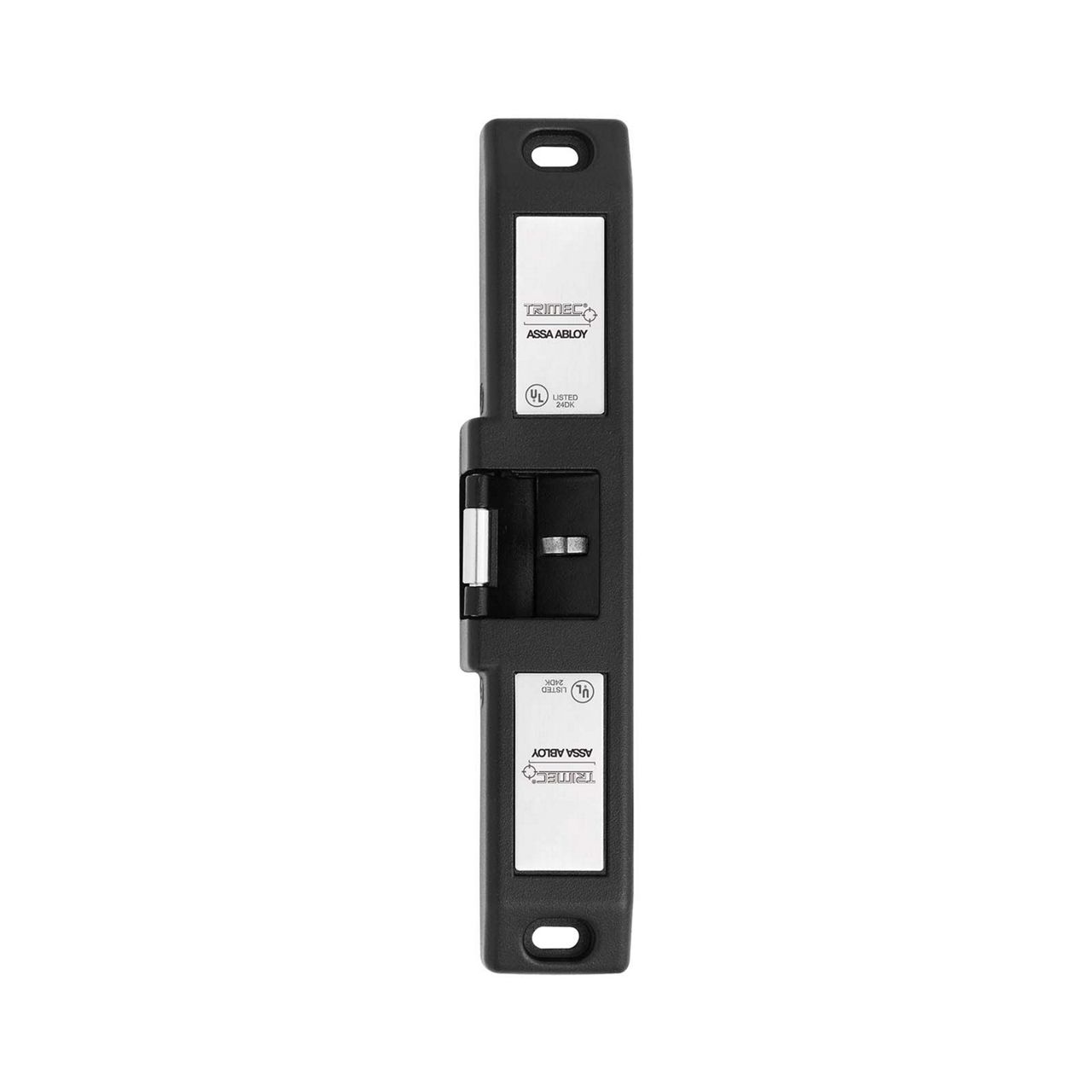

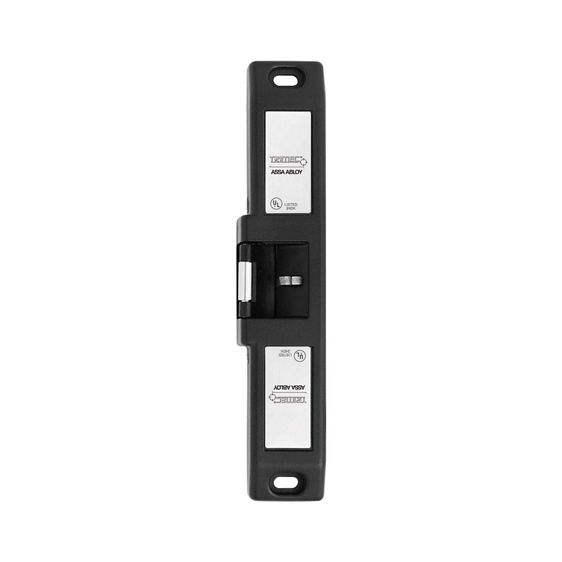

Trimec ES2600 Series Monitored Electric Strike
Fail safe/fail secure changeable on site.
The ES2600 Series surface mounted electric strikes are high security products manufactured from solid stainless steel and designed to be used with existing and new panic bars fitted to emergency doors.
When used in conjunction with a standard access control system, these strikes convert "Exit only" doors with "Pullman type" latches into a full access controlled door, thereby allowing authorised access from the secure side.
The ES2600 series are fully monitored with both solenoid and latch/door monitoring functions & can be changed from fail safe to fail secure on site.
Key Features
- Fail safe/fail secure changeable on site
- High security
- Available in 12VDC or 24VDC
- 650kg holding force
- 1 million cycles endurance rating
- Body depth only 27mm
- Cast stainless steel body
- Low current consumption - max 175mA @ 12Vdc
- Continuously rated solenoid
- Installation template
- Australian designed
- TRICARE® 5 Year Warranty
Applications
- For use with panic bars
- Surface mount
- Egress doors
- Fire rated door sets
- Open out door sets
- Suitable for use with all access control systems
Standards and Compliance
- Approved to UL1034 (highest level)
- CE approved (EMC, ROHS & REACH)
- Regulatory Compliance Mark (RCM) approved
Trimec ES2600 Series Monitored Electric Strike
Voltage
12 or 24VdcCurrent
175mA @ 12Vdc - 88mA @ 24VdcSolenoids
Solenoids rated for continuous use.Monitoring
Solenoid Monitor - 1 amp NO/NC microswitch
Door / Latch Monitor - 1 amp NO/NC microswitchHolding Force
650kg Static Strength RatingEndurance
Cycle tested to 1,000,000 operationsAdditional
Anti friction roller (patented)
Suits panic bars with 15 to 20mm Pullman latch projectionEnvironment
Operational temperature range - 20C to +60CBody
Solid Stainless Steel ConstructionKeeper
Stainless Steel
Latch
Suitable for 15-20mm pullman latch
Specification Statement
The strike should be constructed of solid stainless steel, have a minimum holding force of 650kg and have an endurance rating of 1 million cycles. Maximum penetration into the door frame should not exceed 12mm. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use.
DimensionsItem Part number 12V Fail Safe with Roller Keeper for Panic Bar 112601-000
