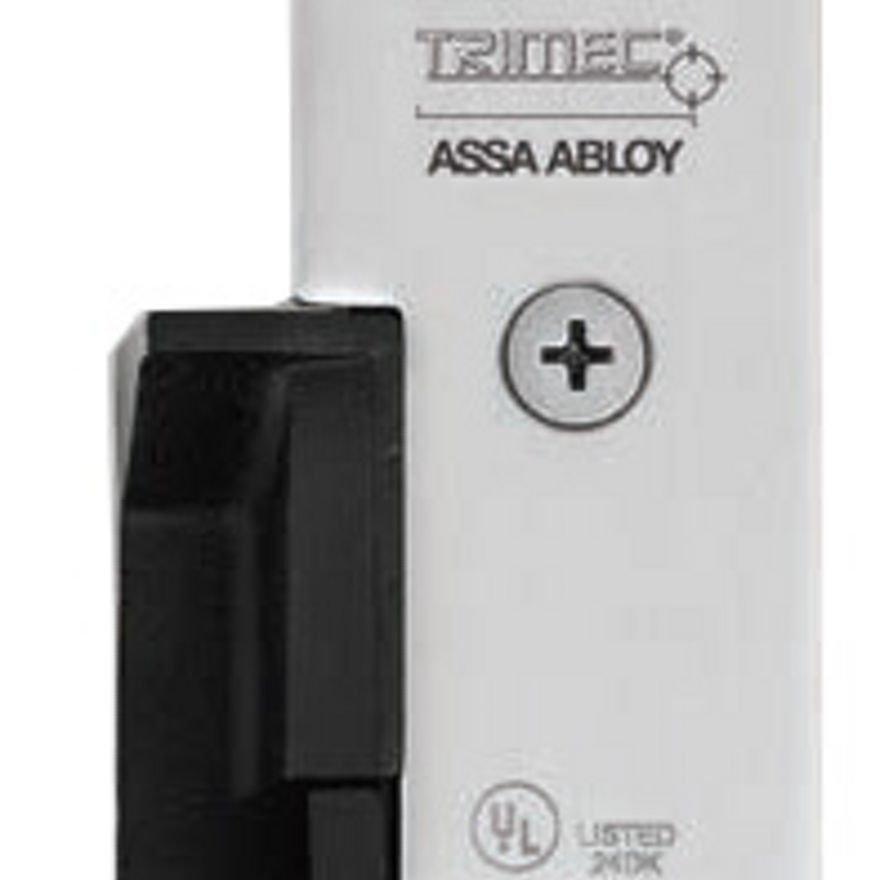

Trimec ES300 Series Electric Strike
Fail safe/fail secure changeable on site.
Trimec ES300 Series Electric Strike
Fail safe/fail secure changeable on site.
The ES300 series electric strikes are designed for high security applications and manufactured from solid stainless steel. These strikes are extremely flexible and can be changed from fail safe to fail secure and mounted on the left or right hand side of the door, thus reducing the amount of variants needed to cover each application.
Key Features
- Fail safe/fail secure changeable on site
- Available in 12VDC or 24VDC
- 850kg holding force
- 1 million cycles endurance rating
- Stainless Steel locking pins
- Continuously rated solenoid
- Optional mounting kit
- TRICARE® 5 Year Warranty
Applications
- Timber or metal doors
- Open in/open out doors
- Suitable for use with all access control systems
Standards and Compliance
- Approved to UL1034 (highest level)
- CE approved (EMC, ROHS & REACH)
- Regulatory Compliance Mark (RCM) approved
Trimec ES300 Series Electric Strike
Voltage
12 or 24Vdc
Current
175mA @ 12Vdc - 88mA @ 24Vdc
Solenoids
Solenoids rated for continuous use
Monitoring
None
Holding Force
850kg Static Strength Rating
Endurance
Cycle tested to 1,000,000 operations
Environment
Operational temperature range -20ºc to +60ºc
Body
Solid Stainless Steel Construction
Keeper
Stainless Steel
Latch
Suit 18mm latch bolt with 3 mm door gap
Specification Statement
The strike should be constructed of stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA @ 12Vdc and have a solenoid rated for continuous use.Item Part number 12V Fail Safe Large Stainless Steel Faceplate - Wide Ext Lip (SEC) 110321-030 12V Fail Secure Large Stainless Steel Faceplate - Wide Ext Lip (SEC) 110322-030 24V Fail Safe Large Stainless Steel Faceplate - Wide Ext Lip (SEC) 110323-030 24V Fail Secure Large Stainless Steel Faceplate - Wide Ext (SEC) 110324-030 Mounting Kit 220200-519
