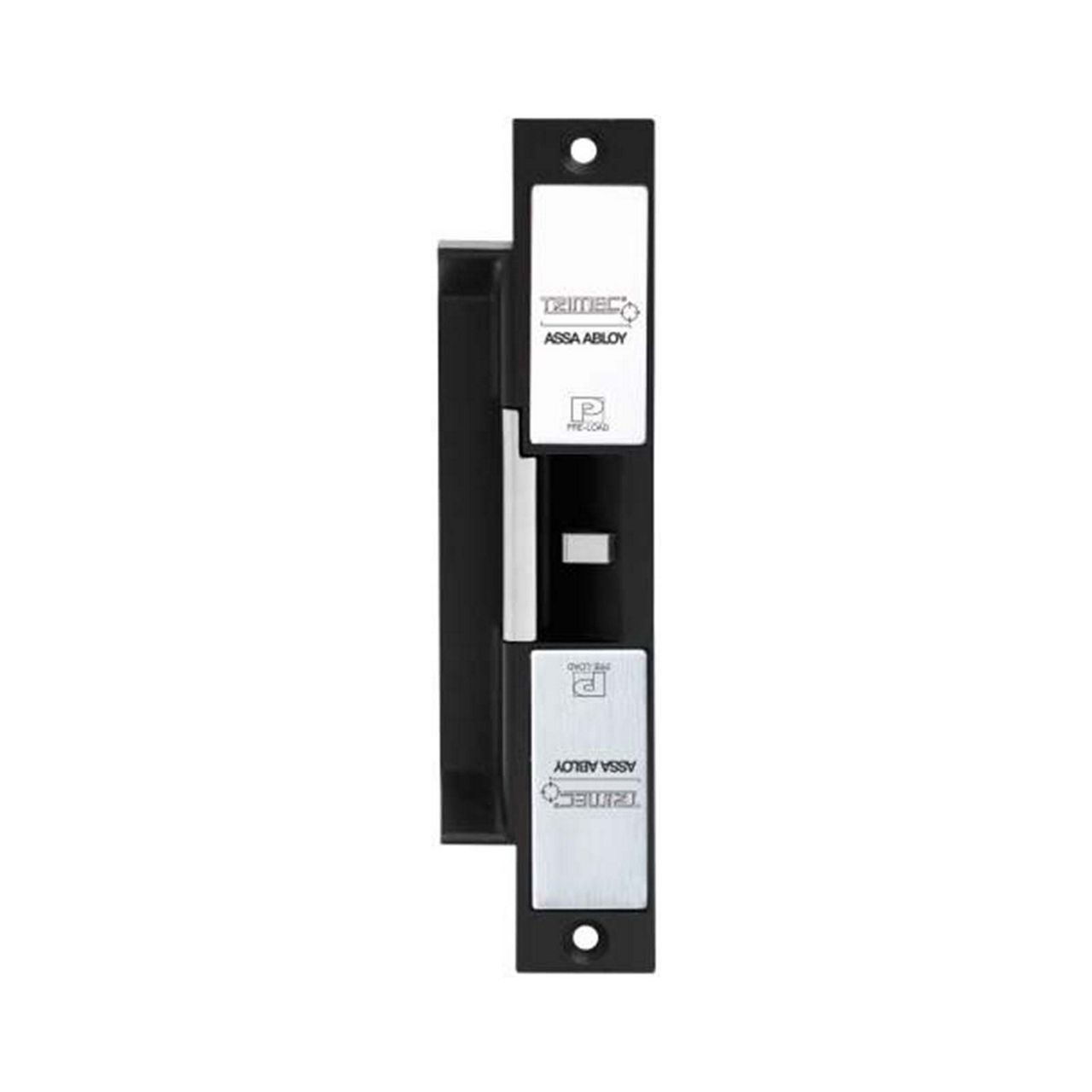

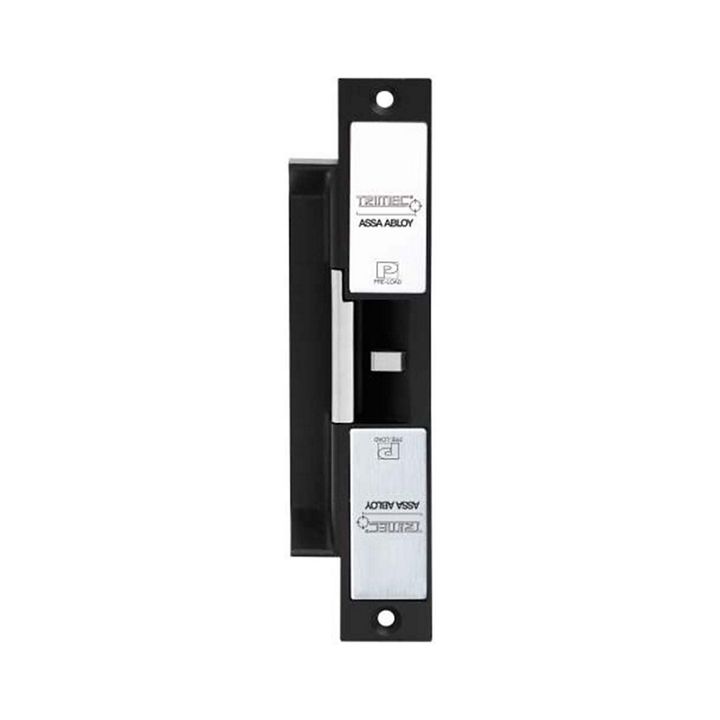

Trimec ES9000 Pre-Load Electric Strike
Fail safe/fail secure changeable on site.
The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.
Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure.
Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.
Key Features
- Operates under preload up to 25kg
- Easy field selectable fail safe/fail secure
- Multi voltage 10VDC to 30VDC
- 1300kg holding force
- 2.5 million cycles endurance rating
- Latch keeper is significantly quieter in operation
- Weather resistant – Remove this as not water ingress rated
- Mounting tabs as standard
- Non handed
- TRICARE® 5 Year Warranty
- Australian designed and made
- Built in Protection Diode
Applications
- High traffic areas
- Doors subjected to side load (pre load)
- Fire rated door sets
- Open in/open out doors
- Suitable for use with all access control systems
Standards and Compliance
- S3 (Security) Australian Lock Standard (AS4145.2.2008)
- D3 (Durability) Australian Lock Standard (AS4145.2.2008)
- Successfully fire rated up to 2hrs on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets)
- For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
- CE approved (EMC, ROHS & REACH)
- Regulatory Compliance Mark (RCM) approved
- IP 5X Rating
- SCEC Approved for Security Level 3
Trimec ES9000 Pre-Load Electric Strike
Voltage
10 - 30VdcCurrent
250mA @12Vdc - 130mA @24VdcSolenoids
Solenoid rated for continuous useElectrical protection
Polarity and back EMF protectedMonitoring
Solenoid Monitor - 1 amp NO/NC microswitch
Door / Latch Monitor - 1 amp NO/NC microswitchHolding force
1300kg static strength ratingEndurance
1,200,000 cycles endurance rating @ 25kg pre-load
2,500,000 cycles general durability without pre-load conditionsLatching
Suitable for 15mm latch with 3mm door gapEnvironment
Operational temperature range - 20C to +60CBody
Solid Stainless Steel ConstructionKeeper
Stainless SteelSpecification Statement
The electric strike should be fully monitored and have independent door / latch and solenoid monitor switches. Holding force for the strike should be not less than 1300kg.Where Power to Lock and Power to Open functions may be required in the same building, a single electric strike should be interchangeable from either fail safe or fail secure from the rear of the strike.
The electric strike should not consume current greater than 250mA @ 12Vdc and have a solenoid rated for continuous use. The strike must be capable of operating with up to 25kg of pre-load pressure applied to the keeper, be tested to 2.5 million operations and carry a minimum warranty of 5 years.
DimensionsItem Part number ES9000 Pre - Load Multi Function Strike with Standard 15.5mm Lip 119001-000 ES9000 Pre - Load Multi Function Strike - No Lip 119001-010 ES9000 Pre - Load Multi Function Strike - 8mm Lip 119001-020 ES9000 Pre - Load Multi Function Strike - with Extension Lip Holes 119001-060 25mm Lip Extension (40.5mm Total) to suit 119001-060 220200-505 50mm Lip Extension (65.5mm Total) to suit 119001-060 220200-506 75mm Lip Extension (90.5mm Total) to suit 119001-060 220200-507 Note: All ES9000 series electric strikes are supplied in Fail Safe configuration.
