Trimec Z Series Single Monitored Electromagnetic Locks
Holding forces from 250kg to 580kg.
Armature Plate and Brackets.
The Trimec Electromagnetic lock range offers a number of accessory options. These accessories allow the electromagnetic locks to be used in a number of different applications and can be adjusted and suited to each situation. This allows the installer to configure the door as required allowing user specific features such as open in / open out selection or glass door applications. Trimec's Electromagnetic Lock accessories meet or exceed local and international standards, providing safe and secure locking.
Key Features
Applications

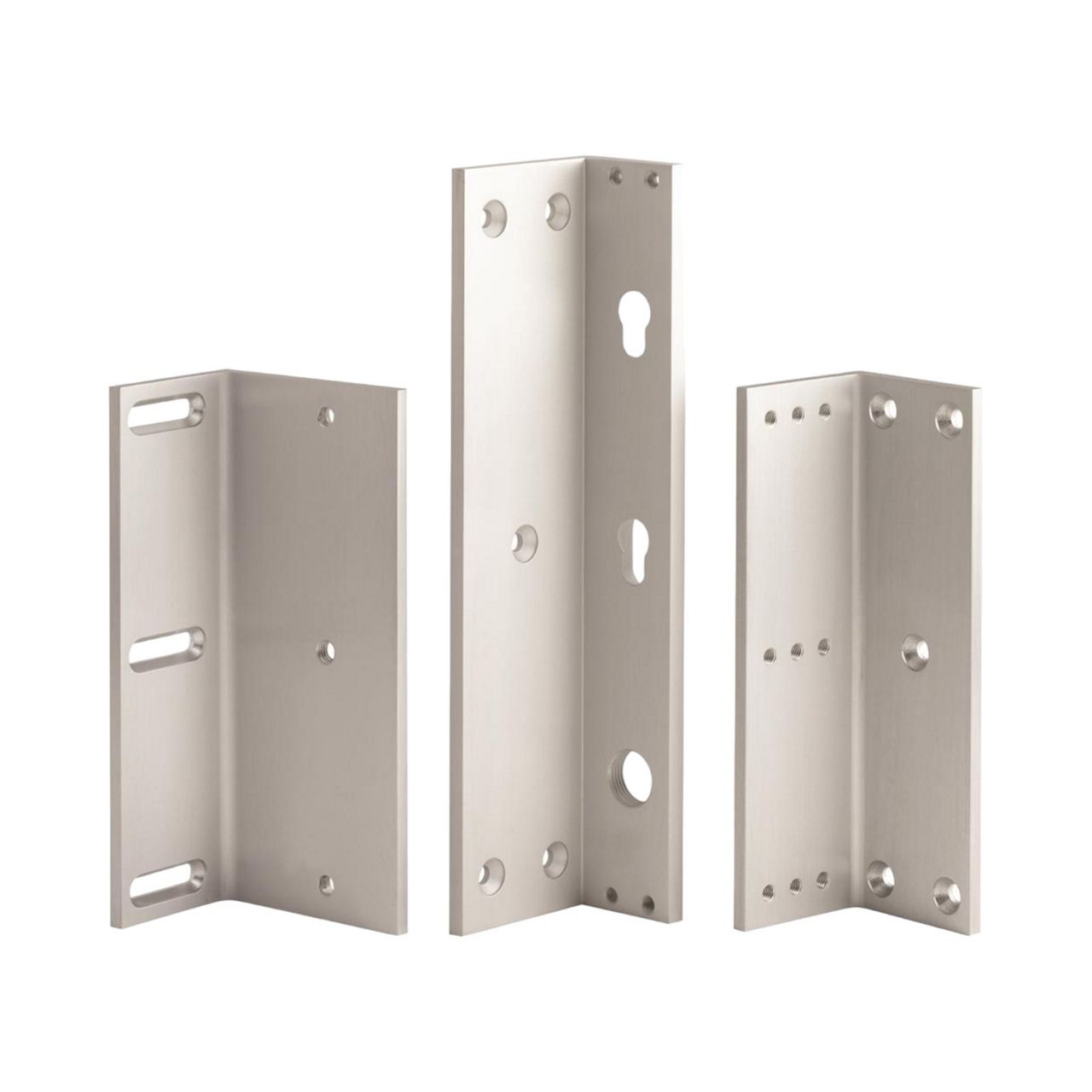

Brackets
Brackets

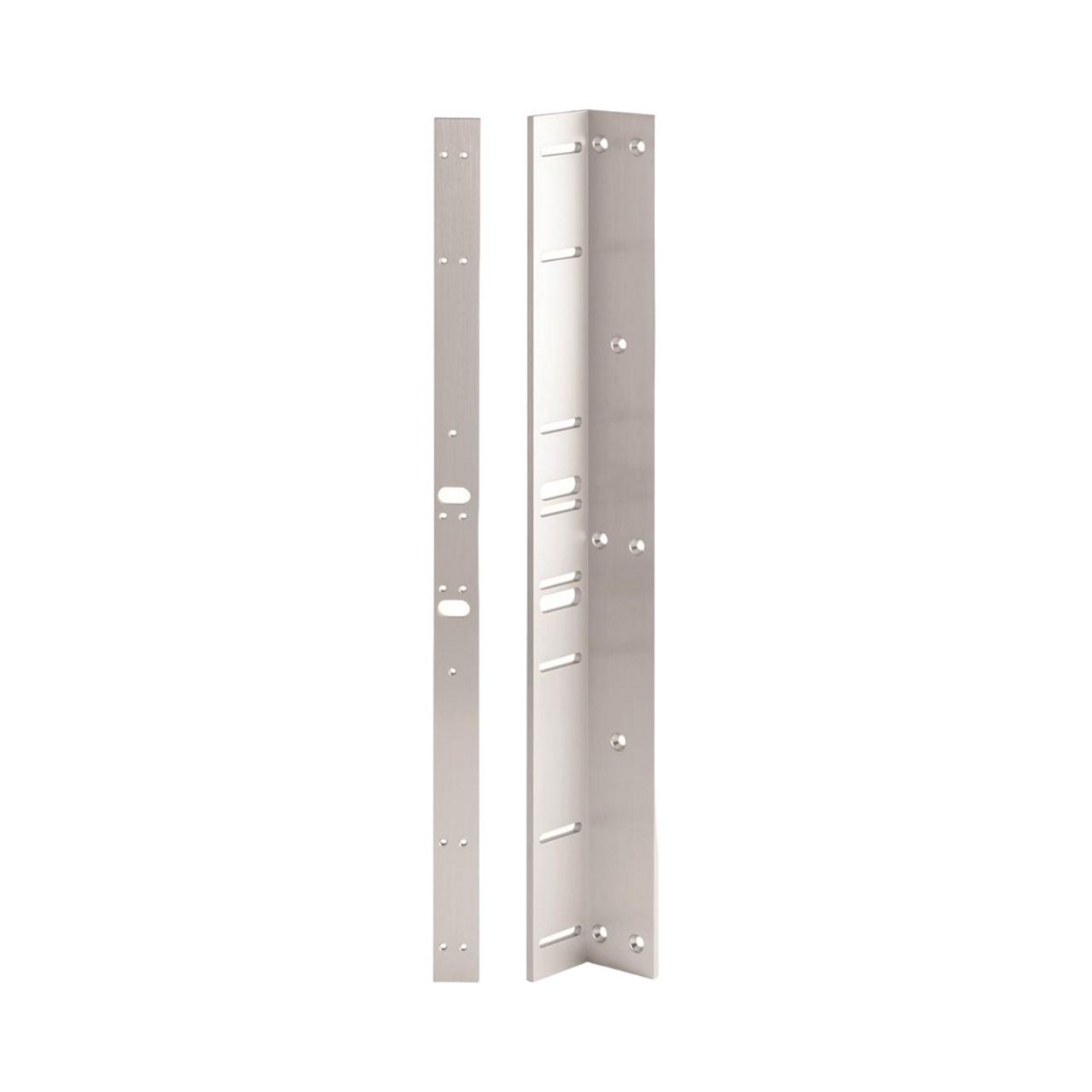

Adjustable Angle Bracket
Armature Plate

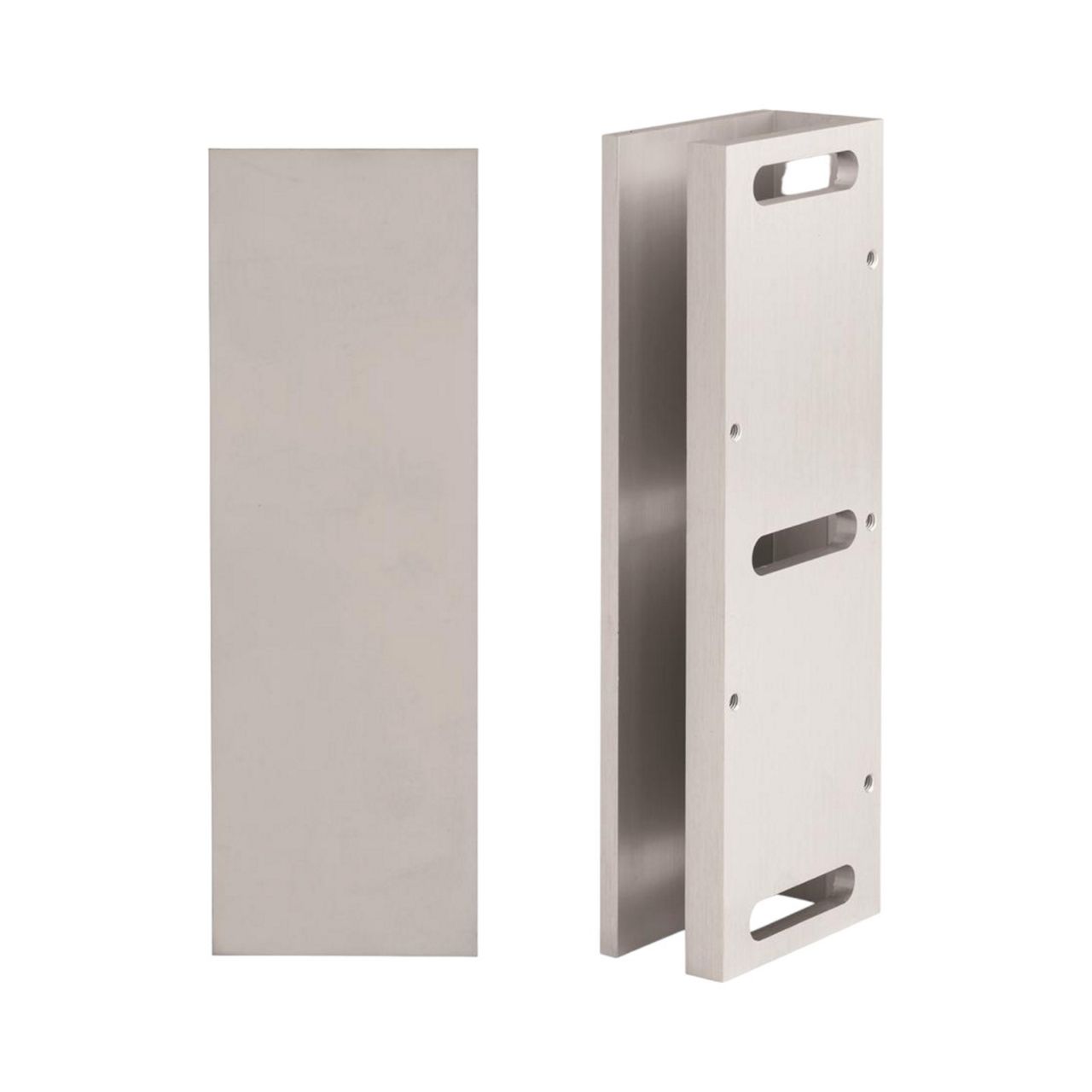

Glass Door U Bracket
Item | Part number |
---|---|
L and Z Brackets - Z4 Single | EMZ4B-SLZ |
L and Z Brackets - Z4 Double | EMZ4B-DLZ |
L and Z Brackets - Z8 Single | EMZ8B-SLZ |
L and Z Brackets - Z8 Double | EMZ8B-DLZ |
Glass Door Armature Plate - Z4 | EMZ4B-GA |
Glass Door Armature Plate - Z8 | EMZ8B-GA |
Glass Door "U" Bracket (12mm Glass) - Z4 | EMZ4B-GU |
Glass Door "U" Bracket (12mm Glass) - Z8 | EMZ8B-GU |
Mounting Plates - Z4 Single | EMZ4B-SMP |
Mounting Plates - Z4 Double | EMZ4B-DMP |
Mounting Plates - Z8 Single | EMZ8B-SMP |
Mounting Plates - Z8 Double | EMZ8B-DMP |
Armature Bracket - Z4 Non-Monitored | EMZ4B-AN |
Armature Bracket - Z4 Monitored | EMZ4B-AM |
Armature Bracket - Z8 Non-Monitored | EMZ8B-AN |
Armature Bracket - Z8 Monitored | EMZ8B-AM |
Screw Kits - Z4 | EMZ4SP-SC |
Screw Kits - Z8 | EMZ8SP-SC |
PCB's - Z4 Monitored | EMZ4SP-PCBM |
PCB's - Z8 Monitored | EMZ8SP-PCBM |
