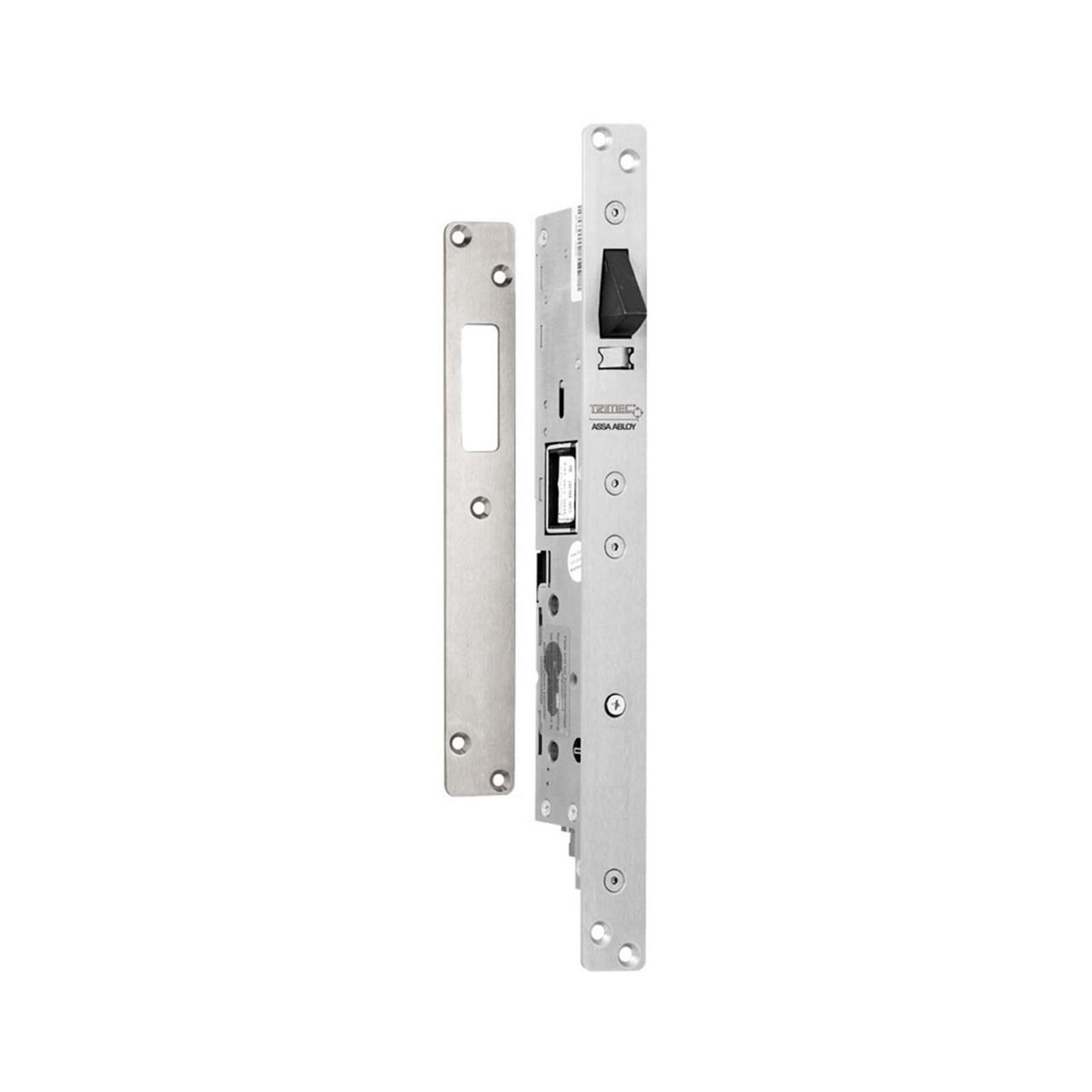

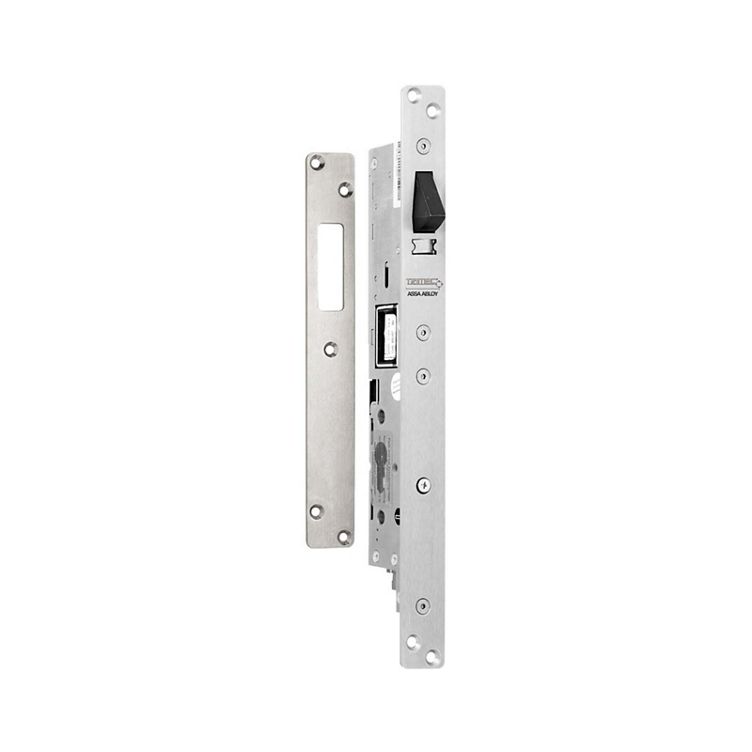

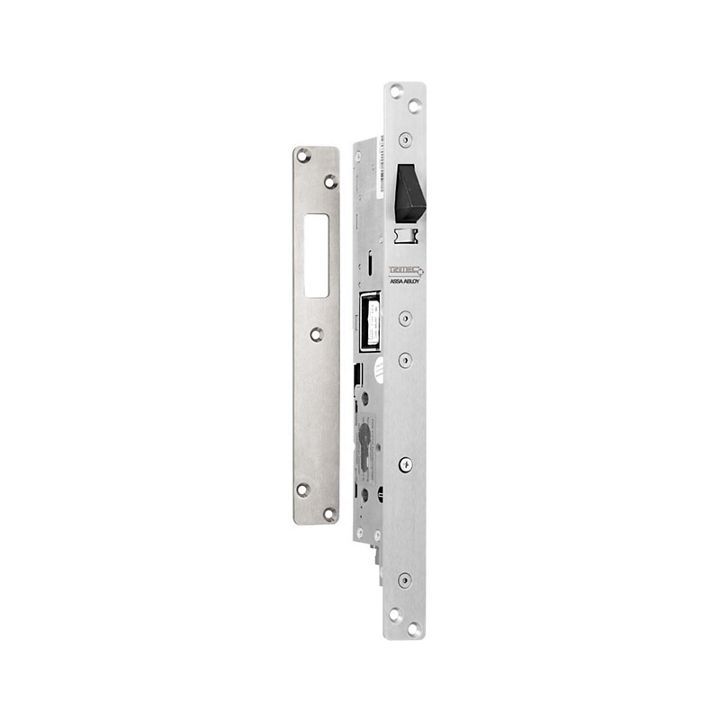

• Voltage
    3 wire control - 24 Vdc regulated supply only

    Current
    Start Current 4.5 Amp (24Vdc) for ½ second
    Holding Current 500mA (24Vdc).

    Monitoring
    Bolt Position 25mA (30Vdc) NC - Door Position 25mA (30Vdc) NC

    Holding Force
    In excess of 2500kg Holding Force

    Pre Load
    Will open with 70kg of Side Pressure (Pre-Load)

    Bolt Throw
    Dead Bolt throw of 20mm

    Door Clearance
    Maximum door gap = 5.5mm

    Environment
    Operational temperature range: -20°C to + 80°C

    Lock Body
    Solid Stainless Steel Construction

    Lock Bolt
    Solid Stainless Steel

    Specification Statement
    The lock must be capable of side pressure and with an overall holding force not less than 2500kgs. Also with side load pressure under pre Load condition up to 70kg. The lock could be mounted both horizontally or vertically. It also must be monitored in the following ways; bolt locked, door closed, with an optional Key-Override.

    Dimensions

  • ItemPart number
    ES8203 24Vdc Technilock Fail safe 30mm118203-010
    ES8203 24Vdc Technilock Fail safe 60mm118203-011
    ES8204 24Vdc Technilock Fail secure 30mm118204-010
    ES8204 24Vdc Technilock Fail secure 60mm118204-011
    Accessories - Optional security escutcheon for ES8200 High Security Bolt228200-000
