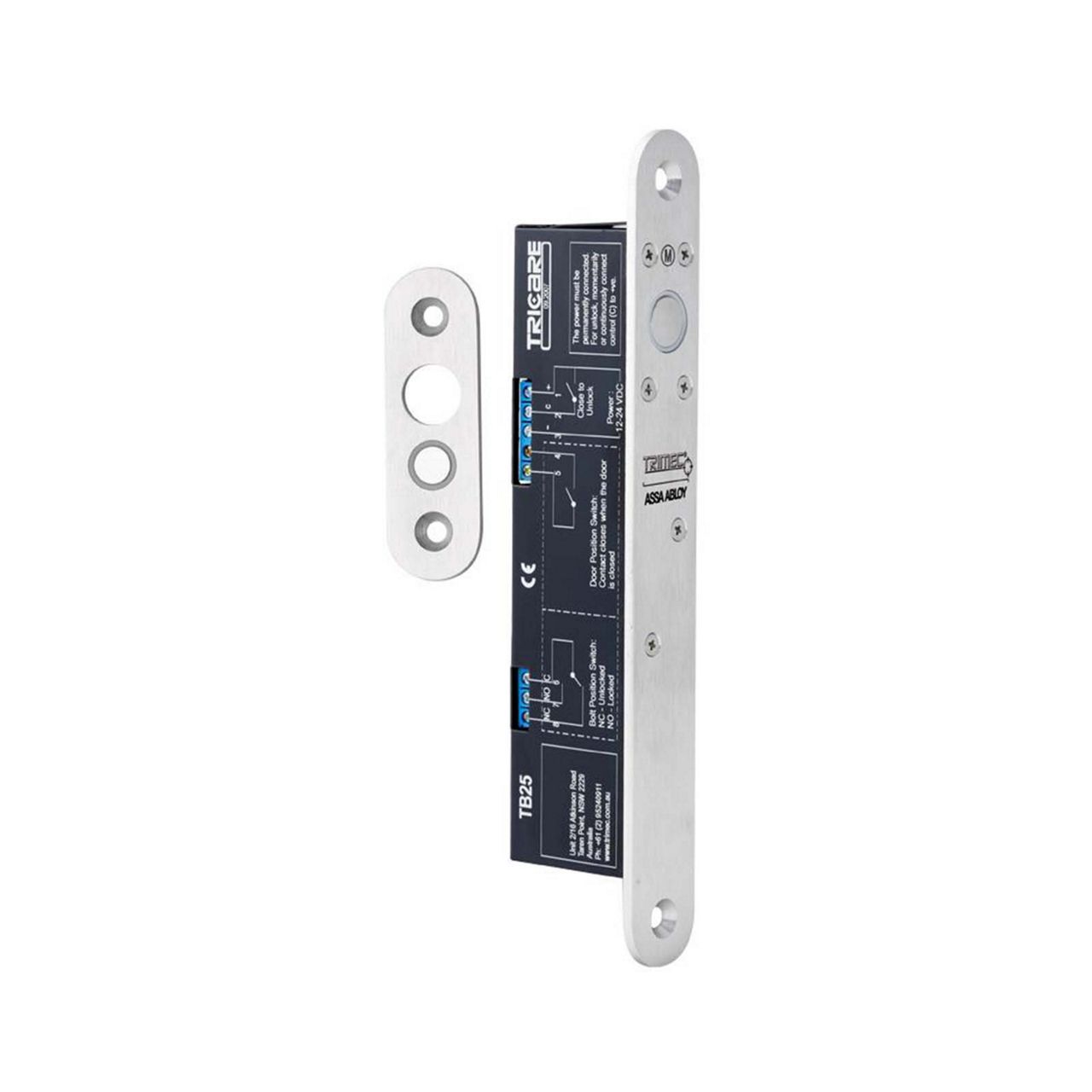

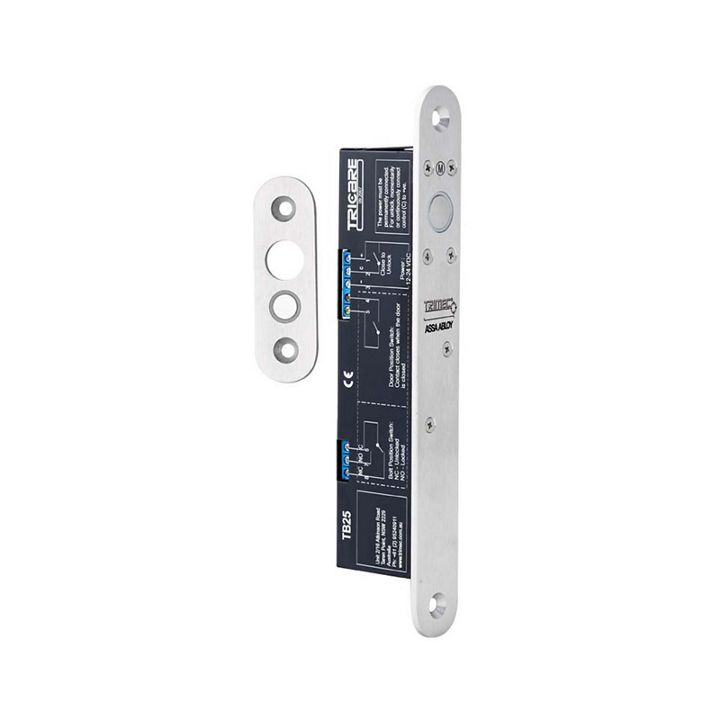

Trimec TB25 Drop Bolt
1000kg holding force.
The TB25 range of drop bolts represent true engineering innovation, design excellence and the superior quality customers have come to expect and demand from Trimec. Designed for use on swing-through, double action doors, these drop bolts are ideal for applications where an electric strike is impractical.
Features
- High Security. Bolt is deadlocked in the extended position
- Bolt position monitored
- Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)
- Multiple Orientation, drop bolts will work horizontally or vertically
- Power to Lock/ Power to Open
- Continuously Rated Solenoid
- Tamper Proof. Lock cannot be defeated by slipping a metal object between lock and striker plate
- Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position
- Thermal Protection. In the event of solenoid overheat, a thermal fuse will operate, eliminating any fire risk
Applications
- Glass doors
- Timber Doors
Standards and Compliance
- British Standard BSEN 50081-1 & BSEN 50082-1
- CE Approved
- C-tick Certified
Trimec TB25 Drop Bolt
Voltage
12 to 24VdcCurrent (Start)
1100mA @ 12Vdc, 1000mA @ 24VdcCurrent (Holding)
210mA @ 12Vdc, 90mA @ 24VdcHolding Force
1000kgLocking Mode
PTL & PTODimensions (Mortice)
164 x 22mmBolt Length
12.7 x 16mmFaceplate Size
10 x 25mmMonitoring Contacts
Bolt & DoorSpecification Statement
The bolt must be able to operate in horizontal and vertical orientations. The position of the bolt must be monitored as well as have an integrated reed switch for door position monitoring. The electronic functions must include: 8 x lock and unlock attempts, 8 second unlock delay, automatic relock after 8 seconds, power reduction circuitry to limit the holding current, and a one time thermal fuse cut-out in case of solenoid overheating. Locking function can be converted from Power to Lock (PTL) to Power to Open (PTO). The faceplate and strike plate must be finished in stainless steel.Dimensions
Installation Instructions
Item Part number TB25 12-24VDC Fail Safe - Dropbolt 118251-000 TB25 12-24VDC Fail Secure - Dropbolt 118252-000 Accessories - EB25 SS Short strike plate RH 228250-000 Accessories - EB25 SS Long strike plate RH 228250-002 Accessories - EB25 SS Housing 228250-003
